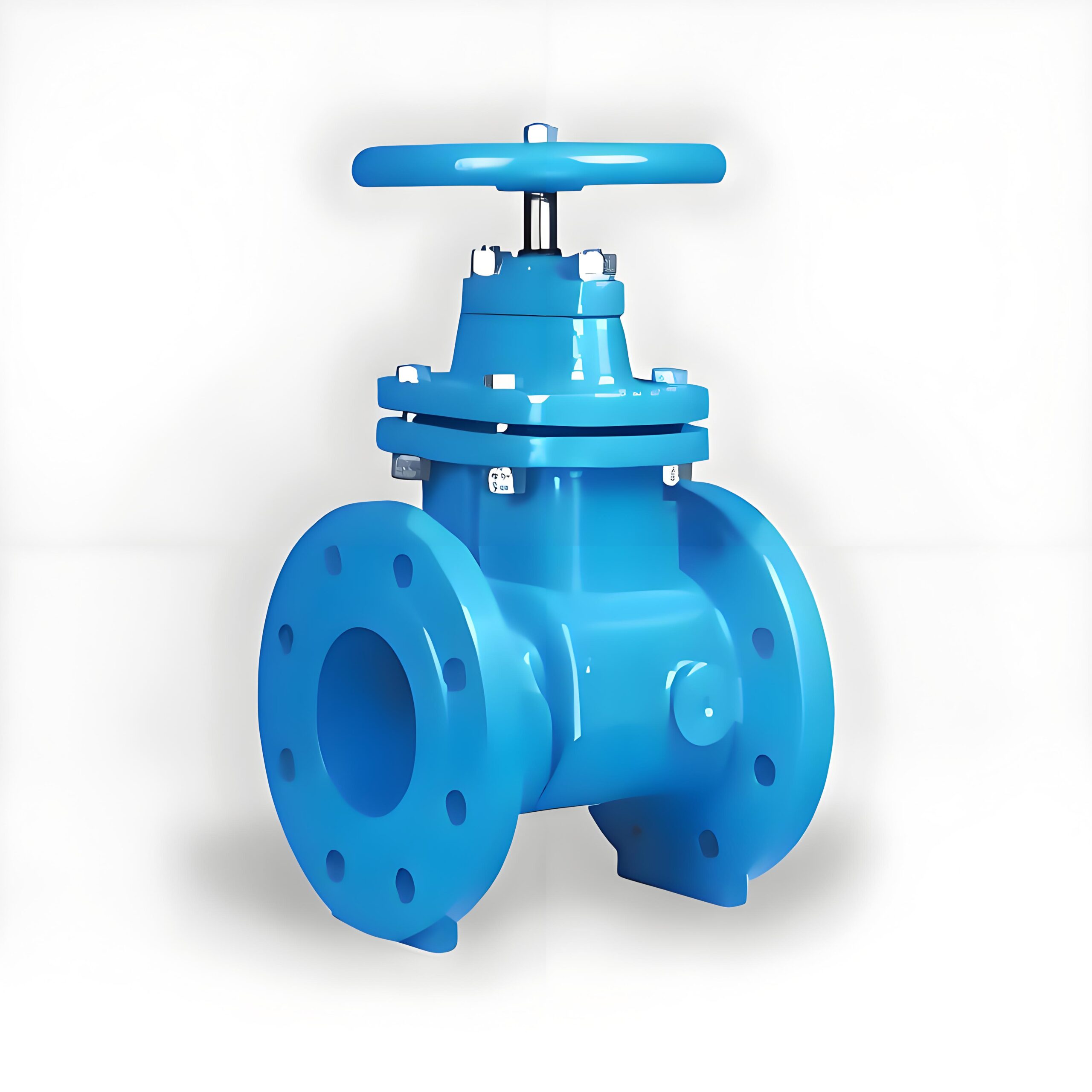

Soft Seal Concealed Rod Elastic Seat Seal Gate Valve

Adopting a special rubber fully wrapped integral elastic valve core structure, fully utilizing the compensating effect of slight deformation generated by elastic sealing to achieve good sealing effect.
It can be widely used in fluid pipelines such as water supply, petrochemicals, metallurgy, ships, food and medicine, and energy systems as a regulating and intercepting device.

1. Lightweight: The valve body is made of ductile iron material, which is 25% lighter than general gate valves and easy to install and maintain; The maximum opening height of the valve is generally 60mm~280mm lower for gate valves, which can be installed in situations with space limitations.

2. Flat bottomed valve seat: The bottom adopts the same flat bottomed valve seat design as the pipeline, which will not cause debris accumulation, and the sprue is unobstructed and the seal is reliable.

3. Corrosion resistance: The valve cavity is coated with non-toxic epoxy resin powder, and the internal parts are made of copper alloy and stainless steel to prevent corrosion and rust. It can be used not only in drinking water, food and other systems, but also in sewage or underground systems.
